SCORM-compatible templates

Short instruction on creating SCORM-compatible templates. The given instruction presents a short description of the issues that should be considered by the developer when developing the SCORM-compatible template. Before all, there are several ways of calling SCORM-functions. scormdriver.js driver usage is the most available (and also free) method. Although the driver is out-of-date, it still works and might be used. Further instruction concerns working with scormdriver.js functions.

Directory structure

Every template must have the following structure:


Such a structure is achieved by uploading the LUCY template to SCORM. All the files connected with the template are located in scormcontent folder. The same folder contains a static folder where all necessary files (e.g. scripts or images) are located. Also, the static folder might as well contain various subfolders. The SCORM root folder contains imsmanifest.xml that allows defining templates names. For example:

<?xml version="1.0" standalone="no" ?>
<manifest identifier="RusticiSoftwareSCORMDriverTemplate" version="1.3"
xsi:schemaLocation=" imscp_v1p1.xsd
  <schema>ADL SCORM</schema>
  <schemaversion>2004 4th Edition</schemaversion>
<organizations default="B0">
<organization identifier="B0" adlseq:objectivesGlobalToSystem="false">
<!--****** Title ******-->
<title>Name of your template</title>
<item identifier="i1" identifierref="r1" isvisible="true">
<!--****** Title ******-->
<title>Name of your template</title>

The <title> tag should contain the template’s name in both parts of the document.

index.html file structure

There is only one particularity about the file - file path. In LUCY path has the following structure: %static%/file. However. in SCORM all the paths should begin with ./static/… The template may contain any amount of HTML-files. Switching between files may as well be performed with plain links (e. g. <a href="file.html"…) and by means of uploading files within AJAX. Thus there are no major differences between LUCY- and SCORM-templates in this respect.

SCORM functions

One has to enable the driver in order to use SCORM functions. The driver is enabled through the /imsmanifest.xml file:

<resource identifier="r1" type="webcontent" adlcp:scormType="sco" href="scormdriver/indexAPI.html">
<file href="scormdriver/indexAPI.html" />
<file href="scormdriver/scormdriver.js" />

On the next step the driver is being initialized. Here is a rough example:

var SCORMDriver;
var fSCORM = false;
$(function() {
    SCORMDriver = window.parent;
        if(typeof SCORMDriver.SetScore === 'undefined') {
            console.log("no SCORM", SCORMDriver);
        else {
            fSCORM = true;

fSCORM variable is set as TRUE if the template is launched through SCORM, otherwise the variable is set as FALSE. Thus, one can create a template that operates both through SCORM and LUCY. The following functions are available for the template developer: The function below returns the Score variable value (it contains the result of course completion).

function lucyGetScoreScorm() {
    if(fSCORM) {
        var score = SCORMDriver.GetScore();
        if(score == "") {
            return 0; /* course is launched for the first time */
        return score; /* in case the course has already been launched the previous result is returned */
    return 0; /* the course is not launched through SCORM */

This function stores the Score value. In this particular example the template contains a course that consists of 10 questions: var lucyQuizQuestions = 10; If user answers 4 questions as an example, lucySetScoreScorm(4) function is called. in this case the Score is calculated: score = 4 * 100 / 10 = 40 %

function lucySetScoreScorm(nAnswers) {
    var score = nAnswers*100/lucyQuizQuestions;
    if(fSCORM) {
        if(score > 99) {
            SCORMDriver.SetScore(100, 100, 0); /* all the questions are answered, result = 100% */
            SCORMDriver.SetPassed(); /* the course is considered passed */
        else {
            SCORMDriver.SetScore(score, 100, 0); /* transfering the result to SCORM */
        /* CommitData() function must be called in order to avoid data loss in case user closes the window unexpectedly */

The following function might be called in case one needs to set “Passed” status:

function endCourse() {
    console.log("End of Course");
    if(fSCORM) {


Free service is recommended in terms of testing the template. Although it has templates size restrictions, any template might be debugged. Since the service has a friendly user interface it is rather easy to work with. However, one should remember that as a rule clients use custom shells, therefore, certain differences of the SCORM templates actions might occur. One should always keep in mind that the SCORMDriver.CommitData() function should be necessarily called every time the result is uploaded to SCORM.


Unfortunately there no shortcuts for creating multilingual templates. In order to create the template in any new language, one has to copy the whole directory structure creating a separate template as a result. Thus, if the template should include three languages one has to create three different templates (each for the particular language).

LUCY- and SCORM-compatible templates creation

First of all, the variables that store current state should be gathered in one particular place of the templates structure. For example: At the bottom of the index.html one enables the following script:

<script type="text/javascript" src="./static/js/ext.js"></script>

The script itself:

$(function() {
    var sChunk = ""; //the template is launched within SCORM check
    SCORMDriver = window.parent;
    if(typeof SCORMDriver.SetScore === 'undefined') {
        //This is not SCORM
        console.log("no SCORM", SCORMDriver);
    else {
        //Yes, it is SCORM
        fSCORM = true;
        //previous state check
        //current state is being saved periodically so one could
        //check the state when the script is started.
        sChunk = SCORMDriver.GetDataChunk();
    //in case the state is not null one transforms the string
    //to javascript variables
    //in case the current state is null one saves a word “empty”
    //in order to be able to see it in  $('div.debug-scorm') debug window
    //within the first launch there is no current state
    //thus SCORMDriver.GetDataChunk() returns an empty string.
        Course.oState = JSON.parse(sChunk);
        sChunk = "empty";
     sChunk = sChunk.replace(/,/g,",<br>");
     //current state is transmitted to debug window. It is not vital in terms of the templates operation
     //but it is convenient in terms of debugging

//save state
//current templates state is being saved
function saveState() {
     //transforming current state to string
     var s = JSON.stringify(Course.oState);
     //Course.oState.allPoints variable stores general result of course completion
     //(all the quizzes results )
     //in this particular template user is able to reach maximum of 600 points
     //transforming points to percents. 600 points equals 100%
     var score = Course.oState.allPoints * 100/600;
          //current state is saved to SCORM
          //600 points --> 100%
          //the result is saved in percents.
          //100% - maximum (The second parameter states that)
          SCORMDriver.SetScore(score, 100, 0);
          //400 points --> passed
          //lower threshold is 400 points for this particular course
          if(Course.oState.allPoints >= 400)
          //the function is called in order to avoid data loss
     console.log("saveState", s, score);

// the following function is called in case the user passes through the whole course to its end

function endCourse() {
    console.log("End of Course");
    if(fSCORM) {

More of the code that is added to the template itself:

var Course = {
    //this object stores current state of the template
    oState: {
        currLesson: 0, //current lesson number
        currFragment: 0, //current fragment number (in case the template includes several fragments)
        avatar: -1, //0 - Sam, 1 - Sue avatar: either female (Sue) or male (Sam) are available to choose
        //the course is divided into so-called cards. Each lesson contains several cards (sublessons)
        //when another card is passed a corresponding flag is marked
        f_card1: 0, //Klassifizierung   bits: 0...4 - topic1...topic5 of the card1 are shown
        f_card2: 0, //Sichere E-Mail Kommunikation
        f_card3: 0, //
        f_card4: 0, //Bankkundendaten bei SIX  lesson16 (bits: 0...2 - topic1...topic3)
        f_card21: 0, //Unterlagen und mobile Gerate
        f_card22: 0, //Gesprache in der Offentlichkeit
        f_card23: 0, //Nutzung privater oder offentlicher Gerate
        f_card24: 0, //
        f_card31: 0, //Sicheres Passwort
        f_card32: 0, //Clean Desk und Clear Screen
        f_card33: 0, //Badge
        f_card34: 0, //
        f_card41: 0, //Fluchtwege
        f_card42: 0, //Brandfall
        f_card43: 0, //
        nCards: 0, //collected cards
        nPoints: 0.0, //points
        allPoints: 0.0, //all points (cards and exams)
        //The course includes 4 challenges. Each challenge gives up to 100 points.
        //following variables contain points for each challenge
        nPoints11: 0.0,    	//Challenge1
        nPoints26: 0.0,    	//Challenge2
        nPoints31: 0.0,    	//Challenge3
        nPoints41: 0.0,        //Challenge4
        //main menu allows to reach a particular lesson
        //at the very beginning of the course all the menu options are of restricted access
        //as soon as the lesson is passed the corresponding option becomes available
        fEnaLesson6: false, //true - enable menu "Lesson1"
        fEnaLesson20: false, //true - enable menu "Lesson2"
        fEnaLesson30: false, //true - enable menu "Lesson3"
        fEnaLesson40: false, //true - enable menu "Lesson4"
        fEnaLesson50: false //true - enable menu "Lesson5"

As one is able to see the Course.oState object stores the current state of the template. Depending on the particular template this object may contain different variables. One should keep in mind that Course.oState object has to be necessarily created when a new template is developed. Older courses store state within Lesson71.percent, Lesson72.percent, and etc. variables. Newer ones should have these variables stored inside of Course.oState

SCORM Player

Since LUCY build 4.8.6 there's a build-in support of SCORM import into LUCY.
List of supported SCORM packets:

  • 1.2
  • 2004 3rd Edition
  • 2004 4th Edition

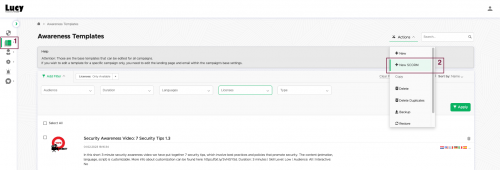

To import SCORM into LUCY proceed to Settings > Templates > Awareness Templates.
Then press Actions > New SCORM

Select a SCORM package file and the import will be initiated.
Once complete, the user would be able to edit templates's properties and add message template for SCORM-based template.

Important compatibility aspects:

  1. Message Template would support multi-language, though SCORM's content will be shown only in the language of SCORM
  2. LUCY does not track particular answers to questions. Victim will be trained only based on SCORM's design
  3. Video-watched percentage is not supported for SCORM
  4. Awareness Diploma/Certificate is not supported for SCORM
  5. Web Content of SCORM cannot be altered within LUCY web GUI
